Z Blade Sigma Mixer

Double Arm Sigma MixerZ Blade Mixer is uses for uniform mixing of semi solid materials. Machine consist of U trough bowl with two ‘Z’ shape blades each rotates in opposite direction for proper mixing of material. Machine equipped with suitable capacity motor & gearbox decided as per characteristics of the product & process. Equipment is provided with Jacket arrangement for heating or cooling applications. We manufacture Sigma kneader mixer in capacity ranging from 5 kgs. up to 5000 kgs.

Z Blade Sigma Mixer is widely uses for mixing glass putty, plasticizer solution, biscuit dough, sauce, polymers etc.

Salient Features


  • Available in Stainless Steel 316, Stainless Steel 304 and Mild Steel materials.
  • Stainless Steel polish to matt & mirror finish as per customer’s requirements.
  • Mild Steel finish with one coat of red oxide and two coats of epoxy paint.
  • Discharge option of hand wheel operated (manual) or hydraulic operated (automatic) offered.
  • Jacket for heating or cooling application can be offered.
  • Mineral wool insulation with cladding on jacket.
  • Tangential designed ‘Z’ blades offered for uniform mixing.
  • PTFE made shaft sealing provided for food grade compatibility.
  • Minimum gap between trough inner shell & blades remove possibility of sticking product.
  • On demand Spray system, vacuum system

Optional Features/Accessories

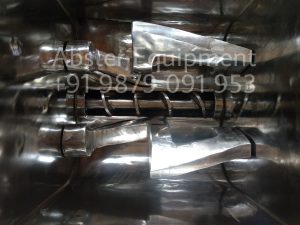

Sigma mixer with extruder, sigma extruder, mixtruder

  • Liquid Spray System
  • Vacuum System
  • Blades Cooling Arrangement
  • Screw System
  • Automatic Valve Discharge System

Technical Specification

ModelCapacity – LitresMotor (H.P.)
Working CapacityGross CapacityGeneral Heavy Duty
ASM – 5050805 H.P.7.5 H.P.
ASM – 75751107.5 H.P.10 H.P.
ASM – 10010015010 H.P.15 H.P.
ASM – 15015020015 H.P.20 H.P.
ASM – 20020030020 H.P.25 H.P.
ASM – 40040055030 H.P.40 H.P.
ASM – 50050075040 H.P.50 H.P.
ASM – 750750115050 H.P.60 H.P.
ASM – 10001000150060 H.P.70 H.P.
ASM – 15001500210075 H.P.80 H.P.
ASM – 20002000260080 H.P.90 H.P.
ASM – 300030003800100 H.P.120 H.P.


* Power voltage can be adjusted as per customer’s domestic power voltage requirements.
* Rights of technical improvements & modification reserved.
* Illustrations & dimensions are shown for information purpose only.
