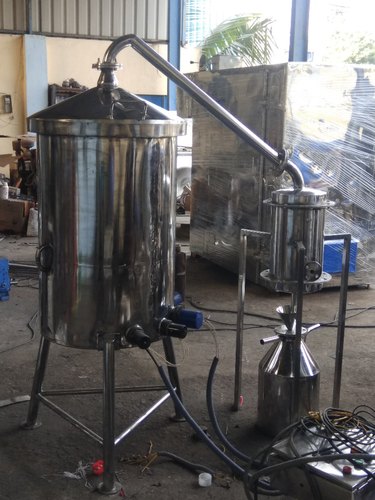

Portable Mini Hydro Distillation unit

Portable Mini Hydro Distillation

Portable Mini Hydro Distillation

This Portable Mini Hydro Distillation unit is popular in production of Indian, Chinese medicines, health products, biological drugs, cosmetics and food. This essential oil Distillation equipment uses technology and chemical separation, can extract plant components efficiently by steam distillation , have good effect in collecting essential oil from plants

Small Capacity Portable Mini Hydro Distillation unit
Model
Capacity
Power
Diameter of Condenser
Material
Heating Area of Extraction Tank
Condensing Area of Condenser
EC10
10L
4KW
102mm
SUS304
0.3M2
0.7M2
EC20
20L
4.5KW
102mm
SUS304
0.4M2
0.75M2
EC30
30L
5KW
133mm
SUS304
0.45M2
0.8M2
EC50
50L
11KW
133mm
SUS304
0.5M2
0.85M2
EC100
100L
15KW
133mm
SUS304
1.05M2
0.95M2
EC150
150L
17KW
133mm
SUS304
1.45M2
1.25M2
EC200
200L
20KW
133mm
SUS304
1.85M2
1.50M2
EC300
300L
25KW
133mm
SUS304
1.95M2
2.00M2
Large Customized Machines
Model
Capacity
Temperature display
Cooling water circulation pump
Crane system
Console
Boiler
EC500
500L
Digital temperature control system, with steam stop valve, drain valves, steam traps, etc.
Cooling water circulation pump, 20tons/H, the cooling water through the pipe into the condenser
750kg
Carbon steel rust treatment table

The gas \ coal \ electric boilers

according customer local conditions to select

EC1000
1000L
1000kg
EC1500
1500L
1000kg
EC2000
2000L
1000kg
EC3000
3000L
1500kg
EC4000
4000L
2000kg
EC5000
5000L
2000kg

Main Features

1)By steam-distillation to reach the extraction of essential oils.
2)Easy operation. One people can operate this machine easily .
3)High efficiency. Using indirect heating of heat- transfer oil, it can quickly reach 100C high temperature under the conditions of cleanness, safety and atmospheric pressure. If required, with vacuum pump, the extraction speed of essential oils will be ore faster.
4)Compact structure. It covers only about 1.5 square meter.

Application
Flowers
Rose; jasmine; lavender; chamomile; ylang ylang; geranium; neroli; clary sage; achillea millefolium; osmanthus; peony; marigold; laurel; honeysuckle; violets.
Leaves
Tea tree; eucalyptus; mint; patchouli; juniperberry; cypress; pine needles; spearmint; basil.
Roots
Ginseng; ginger; angelica; garlic; vetivert; angelica root; mugwort; borneol camphor.
Grasses
Rosemary; verbena; lemongrass; melissa; nardostachys; tarragon; caraway; dill; valerian; houttuynia; wintergreen; evening primrose.
Wood
Sandalwood; cedar wood; rosewood; Birch; holly; camphor; melaleuca; sassafras.
Resins
Frankincense; myrrh; benzoin; fir tree; amyris; Elemi.
Bark
Cinnamon.
Citrus
Bergamot; grapefruit; lemon; orange; lime; tangerine .

Distillation Plant For Flowers
Distillation Plant For Flowers

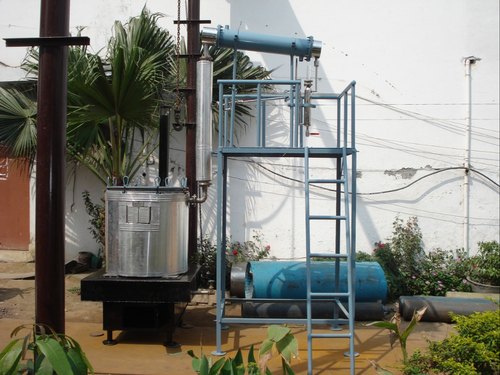

rose-mini-hydro-distillation-unit



Essential oils are the true essence of the botanical plant or plant part. They are the volatile oils extracted by distillation from different parts of Aromatic or botanical plants (These include flowers, leaves, bark, wood, stem, grasses, rhizome or roots).

We supply distillation plants for extraction of essential oils from flowers like –

Rose;
kewda;
Swarnachampa.

The essential oil plants for distilling the volatile essential oils from flowers are supplied in stainless steel. These are also known as Field Distillation Units (FDU) because most of these are installed right in the fields or Plantations where these flowers are grown.
Distillation Plant for Aromatic Leaves
Distillation Plant for Aromatic Leaves

We specialize in the supply of essential oil distillation plants for the widest range of aromatic raw-materials such as flowers, leaves, wood, bark, roots, grasses etc.

Essential Distillation plants are custom built as per the client’s requirement in stainless steel (SS) or mild steel or carbon steel (MS). We supply distillation plants for aromatic leaves such as

Patchouli oil;
Eucalyptus oil;
Geranium oil;
Mentha oil; etc.

Our plants are designed for giving the Best Quality of oil, Free of burnt odor, Free of moisture and with the Highest yield of oil.
