Epoxy Resin Laboratory Mixing Machine Silicone Sealant Sigma Mixer

Epoxy Resin Sigma mixer

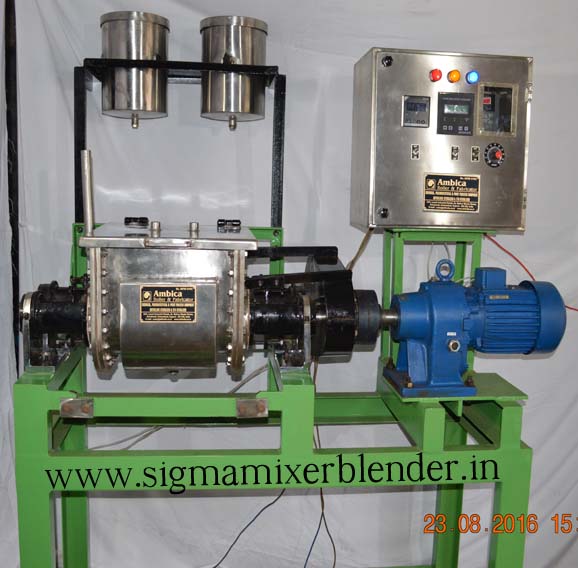

Lab Sigma mixer

Sigma mixer kneader is a kind of ideal high-performance equipment for mixing and kneading high viscosity material.
“ABSTER” series kneader is a kind of ideal high-performance equipment for mixing and kneading high viscosity and super high viscosity materials. Vacuum Kneader is widely used in such industries as high viscosity sealant, silicone rubber, CMC, battery, ink, dye, pharmacy, resin, plastics and cosmetics, etc.

Sigma Kneader temperature adjustment can be done by using heat transfer oil circulation, electric heating, steam and water cooling. It can be made tank body jacket, wallboard jacket, stirrer passing cooling water, passing heat transfer oil and such structures for heating and cooling.

Discharge modes include hydraulic tank turning discharge, screw discharge, bottom discharge and so on. Tank cover open and close are operated by hydraulic. Feeding and discharge are very convenient.

Sigma Kneader is comprised of 6 parts of kneading, chassis, transmission system, vacuum system, hydraulic system, electric control system, etc. Kneading part is comprised of tank, stirrers, wallboard and tank cover. Stainless steel is used for parts contacting materials.

Sigma mixer Machine Available capacity: 1L, 2L, 5L, 10L, 50L, 100L, 200L, 300L, 500L, 1000L, 2000L.

Discharge mode: tank turning


MODELNOMINAL CAPACITYVACUUM DEGREEDISCHARGE MODEHEATING/COOLING MODE
ABF-2L2L-0.098MPaHydraulic Tank Turning/ Screw DischargeElectric, steam heating / oil, water cooling
ABF-5L5L-0.098MPaHydraulic Tank Turning/ Screw DischargeElectric, steam heating / oil, water cooling
ABF-10L10L-0.098MPaHydraulic Tank Turning/ Screw DischargeElectric, steam heating / oil, water cooling
ABF-50L50L-0.098MPaHydraulic Tank Turning/ Screw DischargeElectric, steam heating / oil, water cooling
ABF-100L000L-0.098MPaHydraulic Tank Turning/ Screw DischargeElectric, steam heating / oil, water cooling
ABF-200L200L-0.098MPaHydraulic Tank Turning/ Screw DischargeElectric, steam heating / oil, water cooling
ABF-300L300L-0.098MPaHydraulic Tank Turning/ Screw DischargeElectric, steam heating / oil, water cooling
ABF-500L500L-0.098MPaHydraulic Tank Turning/ Screw DischargeElectric, steam heating / oil, water cooling
ABF-1000L1000L-0.098MPaHydraulic Tank Turning/ Screw DischargeElectric, steam heating / oil, water cooling
ABF-2000L2000L-0.098MPaHydraulic Tank Turning/ Screw DischargeElectric, steam heating / oil, water cooling
