Drum Flaker Manufacturer

Drum flaker machine are used to make flakes continuously from molten material. The molten material to be flaked is poured on the tray of Flaker which get solidified on the surface of rotating drum which is scraped to get flakes of desired thickness. We manufacture Drum Flakers of various capacities depending on the production of flakes required.

Drum Flaker consist of Drum fabricated from Mild Steel or Stainless steel with hollow shafts on both ends. The drum surfaced is duly ground and hard chromed with superior finish to get uniform thickness of the flakes. The drum is provided with a Hollow Shaft for entry of water for sprinkling on the inside of the drum for cooling purpose.

The drum is mounted on self aligning spherical roller bearing for smooth rotation and to take care of scraping loads. A jacketed feed tray is provided below the drum in which molten material is poured, the molten material gets coated to the drum by a sizer pipe. The Scraping arrangement is made of Copper or Fiber Blades to scrape the flakes. A discharge tray is provided to collect the Flakes.

The Flaker drum is rotated by chain sprocket arrangement with Reduction Gear Box which is driven by a variable pulley drive Drum Flaker Machine, Drum Dryer, Rotary Drum Dryer Manufacturer and Supplier. Drum flaker is used primarily for processing chemical products. A rotating drum flaker is widely used solidification process for getting flaked product.

Rotary drum flaker for stearic acid

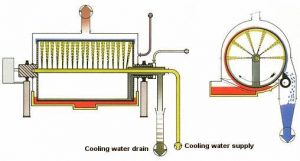

rotary drum flaker

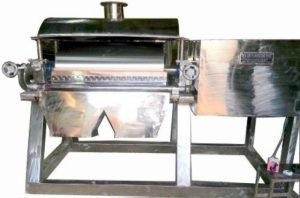

drum-flaker-dryer-machine

Drum Flaker Machine Product Description

Rotary drum flaker, It is applicable to the flake solid transformed from the high-temperature fluid via the cold and heat exchange on the moving surface of the inner cooling roller. It can be universally used in chemical industry and pharmacy.



Main Features:

1) Continuous type Drying and Cooling.

2) Suitable for solid separations from liquid without filtration operation.

3) Slight big solid particles / Flakers.



About Cooling system:

To congeal a molten product the crystallization heat of the product must be removed. This is transferred via the drum flaker’s wall. The heat is relayed via the drum body to the cooling agent, which is usually water. The cooling water is sprayed with a special spray pattern against the inside of the drum using a central spray pipe.
