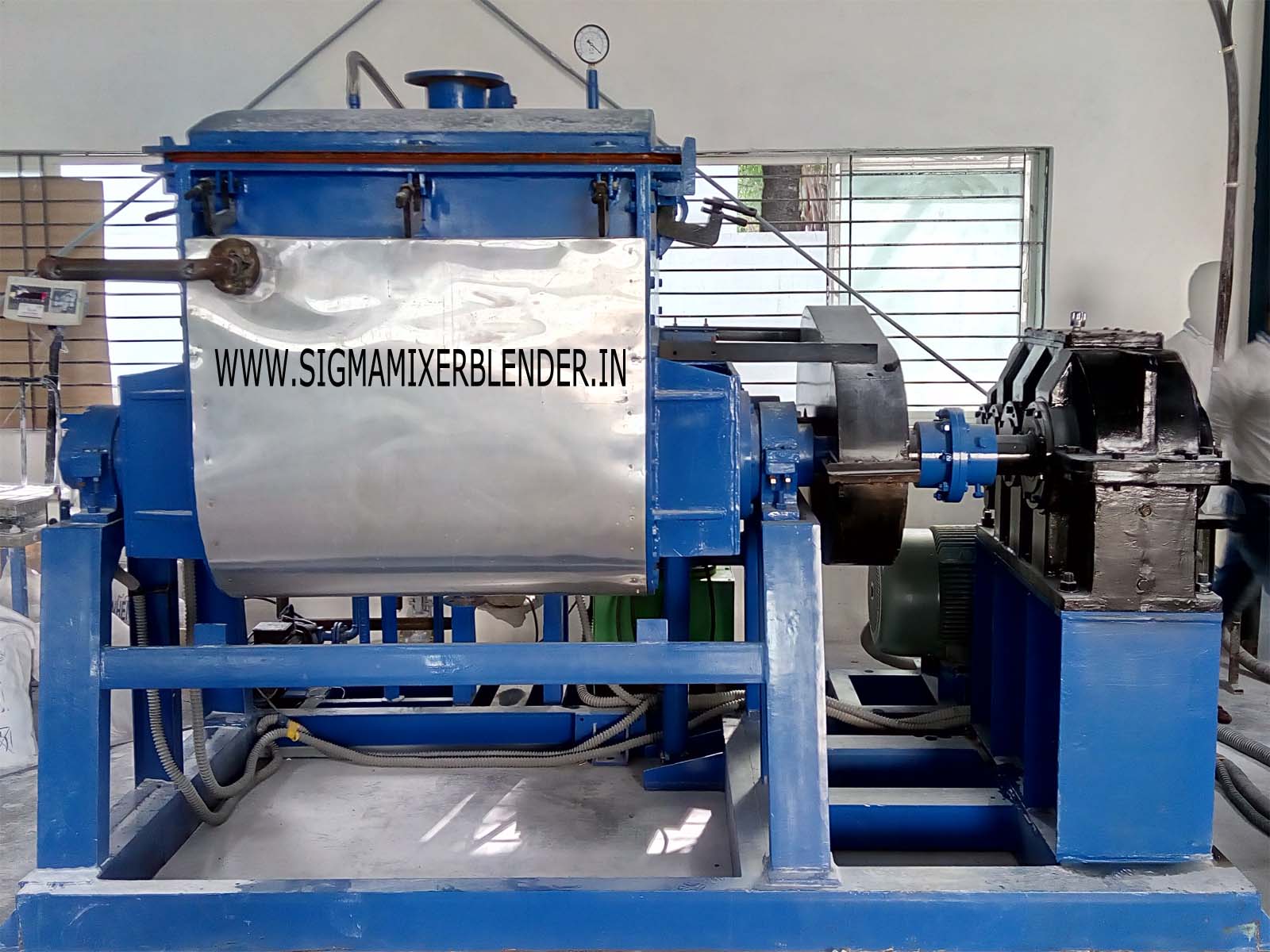

Bubble Gum Sigma Mixer Machine is uses for kneading high viscous bubble gum base materials made of rubber. Machine is having heavy duty design with suitable gauge metal in bowl, blade, cover and jacket for heavy structure to deal with high viscous gum base. Subsequent higher capacity motor and sturdy gearbox provided matching to product parameters. Jacket is offered with mild steel or stainless steel for heating and cooling requirements.
Chewing Gum Sigma Mixer Machine is having usage in mixing center filled bubble gum base, chicklets chewing gum base etc.
- Available in Stainless Steel 316 and Stainless Steel 304 materials.
- Stainless Steel polish to matt & mirror finish as per customer’s requirements.
- Mild Steel finish with one coat of red oxide and two coats of epoxy paint.
- Discharge option of hand wheel operated (manual) or hydraulic operated (automatic) offered.
- Jacket for heating or cooling application can be offered.
- Mineral wool insulation with cladding on jacket.
- Tangential designed ‘Z’ blades offered for uniform mixing.
- PTFE made shaft sealing provided for food grade compatibility.
- Minimum gap between trough inner shell & blades remove possibility of sticking product.
- On demand Spray system, vacuum system
- Liquid Spray System
- Vacuum System
- Blades Cooling Arrangement
- Screw System
- Automatic Valve Discharge System
|Models||Working Capacity||Gross Capacity||Main Motor||Extruder Motor|
|SME – 50||50 Liters||80 Liters||7.5 H.P.||1.5 H.P.|
|SME – 75||75 Liters||110 Liters||10 H.P.||2 H.P.|
|SME – 100||100 Liters||150 Liters||15 H.P.||2 H.P.|
|SME – 150||150 Liters||200 Liters||20 H.P.||3 H.P.|
|SME – 200||200 Liters||300 Liters||25 H.P.||3 H.P.|
|SME – 400||400 Liters||550 Liters||40 H.P.||5 H.P.|
|SME – 500||500 Liters||750 Liters||50 H.P.||5 H.P.|
|SME – 750||750 Liters||1150 Liters||60 H.P.||5 H.P.|
|SME – 1000||1000 Liters||1500 Liters||70 H.P.||7.5 H.P.|
|SME – 1500||1500 Liters||2100 Liters||80 H.P.||7.5 H.P.|
|SME – 2000||2000 Liters||2600 Liters||90 H.P.||10 H.P.|
|SME – 3000||3000 Liters||3800 Liters||120 H.P.||10 H.P.|
* Power voltage can be adjusted as per customer’s domestic power voltage requirements.
* Rights of technical improvements & modification reserved.
* Illustrations & dimensions are shown for information purpose only.
