U type screw conveyor

U type screw conveyor

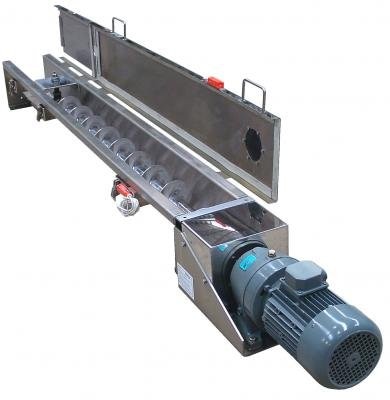

U type screw conveyorU-type-Spiral-Conveyor



U-type screw conveyor is widely used in food, chemical, building materials, metallurgy, mining, power and other departments, mainly for the transmission of small particles, powder, small pieces of material. It is not suitable to transport materials that are easily deteriorating, have larger stickiness, and have higher moisture content.

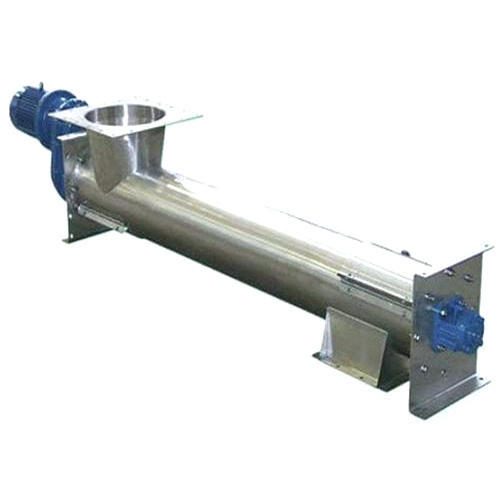

Tubular Screw Conveyor

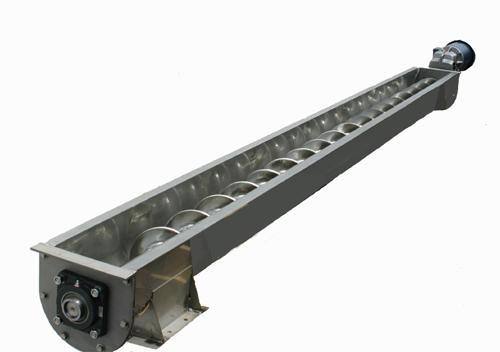

U type screw conveyor

With the constant aid of our expert team, we are also engaged in manufacturing & supplying a wide range of U Type Screw Conveyor. These types of conveyors are large in the size so specially designed by keeping the mind the diverse need of our clients. We prepare our product as per use and suitability of the customers.

Our advanced technology and well modern design aware engineers enable us to produce different sizes and design of the same products. We have well arranged warehousing facility to keep these products safely.

This Conveyor is used in various industries such as chemical factories, construction sugar factory, and cattle feed factory and many more. These conveyors are available from large to medium load with us.

Specification :-

  • High quality motor and gear box, with heavy duty design, large torque and low noise
  • Outside tube complete with one inlet, one outlet, end flange, and inspection window
  • Standard fitting parts, middle bearing, end bearing, splined shaft coupling Lifting eyes on each tube section, convenient for transport and installation
  • Small diameter, great efficiency, high throughout rates

Features :-

Easy to Operate, Low Maintenance, Economical, Easy Installation, Feed & Discharge in Various Position, Excellent Performance, dusting free

Application :-

Chemical, Food, Pharma, Minerals, Guar Gum, Starch, Cellulose, Pigment Colors, Minerals -Ores & etc.

Technical Parameters of spiral conveyor



model

Spiral Diameter (mm)

Pitch (mm)

Speed (r/min)

Throughput (m 3 /h)

speed
(r/min)

Throughput
(m 3 /h)

speed
(r/min)

Throughput(m 3 /h)

speed(r/min)

Throughput(m 3 /h)

D

S

n

ψ=0.33

n

ψ=0.33

n

ψ=0.33

n

ψ=0.33

Small ype

LS100

100

100

140

2.2

112

1.7

90

1.4

71

1.1

LS125

125

125

125

3.8

100

3.0

80

2.4

63

1.9

LS160

160

160

112

7.1

90

5.7

71

4.5

56

3.6

LS200

200

200

100

12.4

80

9.9

63

7.8

50

6.2

Middle size

LS250

250

250

90

21.8

71

17.2

56

13.6

45

10.9

LS315

315

315

80

38.8

63

30.5

50

24.2

40

13.4

LS400

400

355

71

62.5

56

49.3

45

38.6

36

31.7

Large scale

LS500

500

400

63

97.7

50

77.6

40

62.0

32

49.6

LS630

630

450

50

138.5

40

110.8

32

88.6

25

69.3

LS800

800

500

40

198.5

32

158.8

25

124.1

20

99.3

Super large size

LS1000

1000

560

32

277.9

25

217.1

20

173.7

16

139.0

LS1250

1250

630

25

381.7

20

305.4

16

244.3

13

198.5



If you want to know more information ,please feel free to contact us .
