Tablet De-Duster

Tablet De-Duster

Tablet De-dusting and De-Burring Process

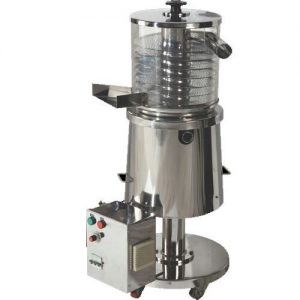

tablet-dedusting-and-deburring-machine

Application & Process :

Tablet De-Duster is pharmaceutical processing equipment that removes the fine surface dust from tablets through using vibratory effect. This machine can be linked directly to any type of high speed tablet press.

In spiral type Tablet de-duster there is vibrated spiral path perforated sieve. The tablets enter in center of perforated sieve from directly Tablet Press then they are gently vibrated and the tablet to move forward, turning and rotating along the spiral path of perforated plate to outer peripheries.

In Elevating De-duster there is vibrated up hill type sieves. The tablets enter bottom inlet of perforated sieve from directly Tablet Press then they are gently vibrated and the tablet to move forward, up ward , turning and rotating along the spiral up hill path of perforated plate to outer at top of the sieve.

These remove the layer of surface dust and edges of tablet. The dust is collected by a dust extraction system through a hose pipe spigot connection and the tablet fall into the container.

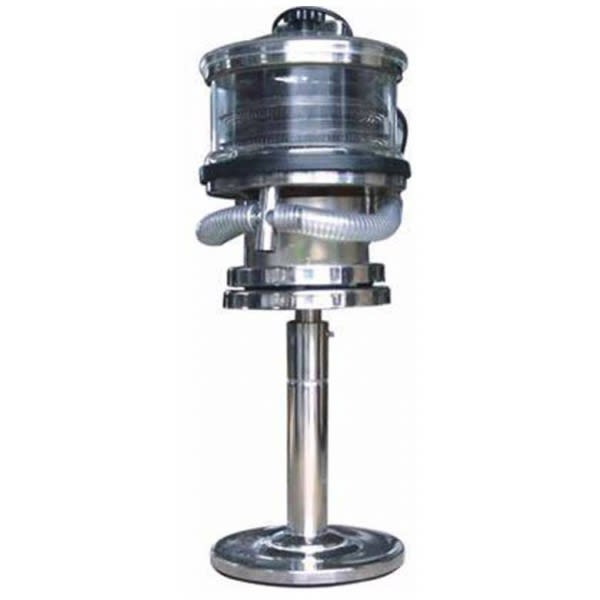

Tablet De-Duster Salient Features :tablet-de-duster

  • Design is cGMP – Current Good Manufacturing Practices compliance.
  • All contact parts AISI 316 & non contact parts AISI 304.
  • Geometrically designed tablet route to ensure remove dust and burrs.
  • Easy to install with all types of Tablet Press with inline metal detector.
  • Option for Spiral OR Elevating-Up hill type De-duster.
  • Adjustable height.
  • Easy to mobility.
  • Easy and simple dismantle for cleaning of all contact parts.

Technical Specification :

MODEL
ABFDD – 250E
ABFDD – 350
Output per hour
1,74,000 Tab/Hour
2,50,000 Tab/Hour
Tablet Path
Bottom to Top – Elevating
Spiral
Maximum Tablet Diameter
20 mm
20 mm
Minimum Tablet Diameter
5 mm
5 mm
Conveying Height Differential
235 mm
No Conveying
Electric motor
0.25 HP X 2 Nos. Motor = 0.5 with AC Drive
0.25 HP / 0.19 kW
