Ointment Manufacturing Vessel

Ointment manufacturing vessel- Cream – Tooth Paste- Gel Manufacturing Plant

Ointment / Cream / Tooth Paste / Gel Manufacturing Plant

ointment manufacturing vessel, Cosmetic Cream Lotion Ointment Mixing Tanks And Manufacturing Plant

Ointment manufacturing vessel, Semi solid manufacturing Plants are ideal tools for the pharmaceutical & cosmetic industries for the production of Ointment, Cream, Lotion, Gel, Tooth Paste & emulsions & homogenization.

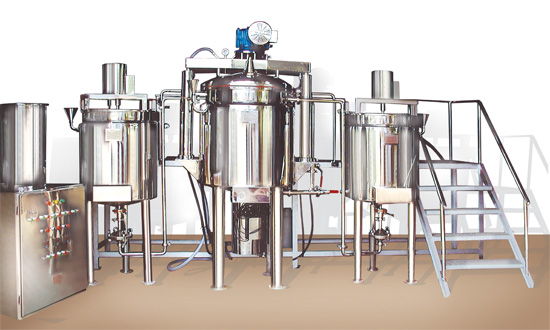

Fully automatic Ointment, Cream, Tooth Paste , Gel manufacturing plant consisting of

Ointment manufacturing vessel

  • Pre determined water phase vessel.
  • Pre determined oil, wax, petroleum jelly phase vessel.
  • Vacuum Homogenizer Mixer vessel.
  • Vacuum Pump
  • Storage vessel
  • Interconnecting pipeline.
  • Transfer Pumps (Bump Pump, Lobe Pump & Metering pumps)
  • Integrated automatic control panel.
  • Working Platform

Design Features :

  • Design compliance with cGMP
    • Integrated Cleaning in Place-CIP.
    • Sterilizing In Place-SIP as an Option.
  • Batch Size
    • Available model 50 Liter to 2000Liter working Capacity.
  • Materials
    • Product Contact AISI 316L.
    • Food Grade silicon rubber for seal.
  • Water Phase Vessel
    • Jacket for heating & cooling.
    • Heating Jacket Pressure (4 bar).
    • Heating by steam or hot water circulation.
    • Propeller stirring with top mounting.
    • Temperature controller & safety pressure Valve.
    • Bottom discharge with valve.
  • Wax Phase Vessel
    • Jacket for heating & cooling.
    • Heating Jacket Pressure (4 bar).
    • Heating by steam or hot water circulation.
    • Propeller stirring with top mounting.
    • Temperature controller & safety pressure Valve.
    • Bottom discharge with valve.
  • Manufacturing Vacuumize Homogenizer Vessel.
    • Jacket for heating & cooling.
    • Vacuumize process.
    • Vessel Inside Pressure (-1 /+2 Bar)
    • Heating Jacket Pressure (-1 /+6 bar)
    • Heating by steam or hot water circulation.
    • Agitator mixer with self pressure Teflon scrapper.
    • Scrapper cleanly working on both side.
    • High speed Homogenizer with toothed Rotor – stator type.
    • RPM sleeplessly with variable speed drive for agitator & Homogenizer.
    • High shear & pressurization of the homogenizer.
    • Thus homogenization of high viscosities up to 400.000 mPas.
    • Homogenizer mounted on lower position in the centre of vessel.
    • Top lid with motorized top lid for lifting & lowering.
    • Safety Interlock process with limit switch.
    • Connection for Vacuum, Charging, Eye glass window, Light glass, CIP,SIP, Pressure gauge & safety valve.
    • Temperature controller & safety pressure Valve.
    • Bottom discharge with valve.
  • Vacuum System
    • Water Ring Vacuum Pump.
    • Vacuum gauge & Vacuum relief valve.
  • Storage Vessel
    • Skid type storage vessel.
    • Bottom cone is Jacket for heating.
  • Inter Connecting Pipe
    • Inter connecting Pipe line of all vessel for transfer Water, Wax & products.
    • Recirculation in manufacturing vessels.
    • Vacuum connecting pipe.
  • Working Platform
    • Rigid structure with anti slipping embossed plat.
    • Made from AISI 304.
  • Controls & Visualization
    • Electric Controls with digital display.
    • Optional PLC Controls with HMI Touch screen.
    • RPM and Process time entries.
    • Temperature controls- Heat/cool.
    • Vacuum start- Stop.
    • Integrated Data Recording for batch.
  • Safety Features
    • Emergency stop button
    • Safety vacuum relief valve & Indicator Gauge.
    • Safety Pressure Valve.
    • Limit switch at top lid

Ointment/ Cream/ Tooth Paste Manufacturing Plant - 500 L

Ointment/ Cream/ Tooth Paste Manufacturing Plant – 500 L

Ointment/ Cream/ Tooth Paste/ Gel Manufacturing Plant- 1000 L

Ointment/ Cream/ Tooth Paste/ Gel Manufacturing Plant- 1000 L

Ointment/ Cream/ Tooth Paste/ Gel Manufacturing Plant- 600 L

Ointment/ Cream/ Tooth Paste/ Gel Manufacturing Plant- 600 L

Ointment/ Cream/ Tooth Paste Manufacturing Plant- 400 L

Ointment/ Cream/ Tooth Paste Manufacturing Plant- 400 L

Ointment/ Cream/ Tooth Paste Manufacturing Plant- 200 L

Ointment/ Cream/ Tooth Paste Manufacturing Plant- 200 L

Ointment/ Cream/ Tooth Paste Manufacturing Plant- 1000 L

Ointment/ Cream/ Tooth Paste Manufacturing Plant- 1000 L
