1000L Homogenizer Mixer Liquid Soap Mixing Machine Cosmetics Equipment

1000L homogenizer mixer liquid soap mixing machine cosmetics equipment

1000L-Homogenizer-Mixer-Liquid-Soap-Mixing-Machine-Co

Machinery Introduction
1. ABF-M1000L Liquid Washing Homogenizer Mixer machine for liquid soap mixing adopts single-direction or doubledirection scraping blending and frequency. conversion speed adjustment,
so as to satisfy product of different technological requirements.
2. According to technological requirements, the materials can be heated or cooled. The heating method can be chosen steam or electric heating according to customer.
3. Various forms of blending vanes are suitable for production of different types of products.
4. Made of imported SUS304 or SUS306L stainless steel. The tank body and pipe are carried out mirror polishing.
5. Vacuum pump can be equipped to carry out vacuum defoaming (optional).
6. Bottom installation type dispersing head and emulsifying head are optional to speedup dissolution and emulsification of materials.
7. The stainless steel electric control cabinet can completely supervise the operation of equipment, and display data, such temperature and blending rotation speed etc.

TECHNICAL SPECIFICATIONS

Nameliquid shampoo shower homogenizing mixer machine
Volume of Mixer1000L
Inner jacket MaterialSUS316L(4mm)
Middle jacket MeterialSUS304-2B(4mm)
Out jacket MaterialSUS304-2B(3mm)
Paddle MaterialSUS316L
Homogenizer Speed(SIEMENS)0-2880 r/min
Homogenizer Power7.5kw
Speed of Scraping Plate Blender(frequency converter)0-63 r/min
Blender Power(SIEMENS)4kw
Temperature of Mixer≤100 ºC
Voltage50-60Hz
380V±10%-15%

Liquid Washing Homogenizing Mixer

Brief introduction to representative production process:
1. The heating pot & the cooling pot are used independently so as to enhance efficiency and save energy.
2. The material sucking(AES)homogenizer is adopted to accelerate the dissolution and alleviate labor intensity.
3. The whole machine has compact structure with convenient operation.
4. If it is allocated with heating water furnace, the plate type heat exchanger will make the using effect better.

50L:
Quantity:

Inquire Add to Basket

  • LM50 to LM5000
  • Abster
  • Can be customized

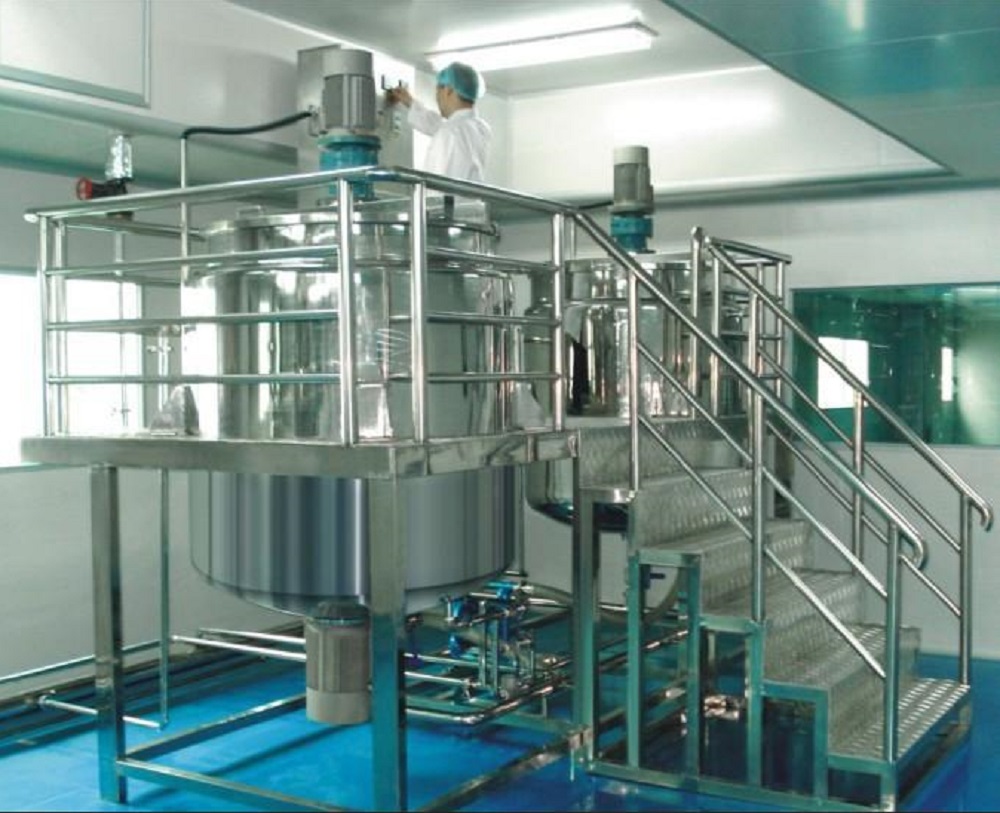

50L to 5000L Liquid Washing Homogenizing Mixer
3_d1e859ebcfb4391b4601631195581384
Brief introduction to representative production process:
1. The heating pot & the cooling pot are used independently so as to enhance efficiency and save energy.
2. The material sucking(AES)homogenizer is adopted to accelerate the dissolution and alleviate labor intensity.
3. The whole machine has compact structure with convenient operation.
4. If it is allocated with heating water furnace, the plate type heat exchanger will make the using effect better.

Usage
This unite is available for manufacturing liquid products(such as detergent, shampoo, shower gel, ect) It integrates mixing, homogenizing, heating, cooling, pump discharging finished products and fefoaming(optional)functions. It is the ideal equipment for liquid products in domestic and international factories.

Performance And Features
The all-round wall scraping mixing adopts the frequency conventer for speed adjustment, so that high quality products with different process can satyisfy customer requirements.
The diversified high-speed homogenizer can powerfully mix solid and liquid raw materials and rapidly dissolve many indissoluble materials such as AES, AESA, LSA, ect. During the liquid detergent production process so as to save energy consumption and shorten production period.
The pot body is welded by imported three-layer stainless steel plate. The tank body and the pipes adopt mirror polishing, which fully conforms to GMP requirements.
According to customer’s requirement, the tank can heat and cool materials.
The heating way include steam heating & electric heating. Easy to discharge, bottom direct discharge or by transfer pump.

Technology Parameter of LM Liquid Washing Homogenizing Mixer

ModelCapacityHomogenizing motor(kw)Stir motor(kw)Length(mm)Wide(mm)Height(mm)Total power(kw)
LW-200200L2.2-40.755
LW-300300L2.2-41.36
LW-500500L5.5-7.5311
LW-800800L7.5-11412
LW-10001000L7.5-11412
LW-20002000L11-155.517
LW-30003000L15-187.523
LW-40004000L217.529
LW-50005000L217.529

Technology Parameter of EL Liquid Washing Homogenizing Mixer

Serial
No.
SpecificationVoumeBlending PowerBlending Rotation SpeedHomogenizing PowerHomogenizing Rotation SpeedHeating Method
LKWR/minKWR/min
1ELJ-(X)-2002001.50-6543000Steam Heating or Electric Heating
2ELJ-(X)-5005002.20-657.53000
3ELJ-(X)-1000100040-65113000
4ELJ-(X)-150015005.50-65113000
5ELJ-(X)-200020005.50-53153000
6ELJ-(X)-300030007.50-5318.51500
7ELJ-(X)-50005000110-53221500

Technology Parameter of PME Liquid Washing Homogenizing Mixer

ModelCapacity
(L)
Mixing Power
(KW)
Mixing Speed
(r/min)
Homogenizing Power(KW)Homogenizing Speed(r/min)Heating Method
PME-2002000.750-652.2-43000Steam Heating or Electric Heating
PME-3003000.750-652.2-43000
PME-5005002.20-655.5-7.53000
PME-1000100040-657.5-113000
PME-200020005.50-5311-153000
PME-300030007.50-53183000
PME-50005000110-42223000


About us

Abster Equipment Is professional corporation that mainly operates design, manufacture, installation and debugging of cosmetic, pharmaceutical, chemical, food, etc. Equipments. Enterprise strictly implements the ISO9001 standard management, with strong technical force, complete detection equipment, advanced process and complete product variety which including all kinds of Reaction Kettle, agitator bath, storage tank, vacuum emulsifying machine, conveyor, filling machine and non-standard equipments process and manufacture; Electrical engineering, automatic-control engineering, pipe design and equipment installation.
