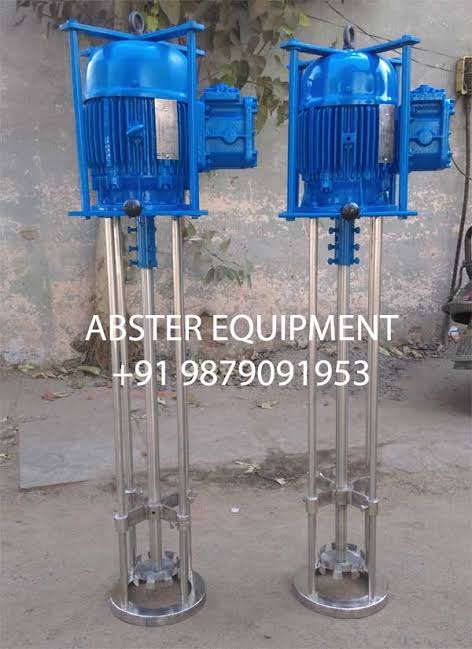

High speed stirrer
High speed Stirrer
Application:
The high speed stirrer is suitable for batch production, it is apply to all kind of liquid to pre-mix, disperse, color matching, etc.Features:
—hydraulic lifting, the frame can turn around flexible
—can match with cover, incase of material splashing or flying and volatilization of solvent based product during working.
—less air absorption during working
—paint mixer can blend and dissolve product quickly
—with inverter, various speed control, low noise and long-time continuous production
—stable performance, high efficiency
—stainless steel mixing tank with clamp or belt is optional
—motor can be explosion-proof, and the dispersing tank can be vacuum or seal
—paint mixer can be hydraulic lift or pneumatic lift
—Type: Floor type and platform type
—one machine can serve several tanks
Paint mixer Parameter:
| Model | Main Power (kw) | Rotation Speed (rpm) | Diameter of Disc (mm) | Stroke (mm) | Pump Power (kw) | Weight (kgs) |
| ABF-4 | 4 | 1440 | 100-200 | 700 | 0.75 | 700 |
| ABF-7.5 | 7.5 | 1440 | 200-300 | 900 | 1.1 | 1000 |
| ABF-11 | 11 | 1440 | 200-300 | 900 | 1.1 | 1000 |
| ABF-15 | 15 | 1440 | 200-300 | 900 | 1.1 | 1000 |
| ABF-18.5 | 18.5 | 1250 | 300-400 | 1200 | 2.2 | 1500 |
| ABF-22 | 22 | 1250 | 300-400 | 1200 | 2.2 | 1500 |
| ABF-37 | 37 | 1250 | 300-400 | 1200 | 2.2 | 1800 |
