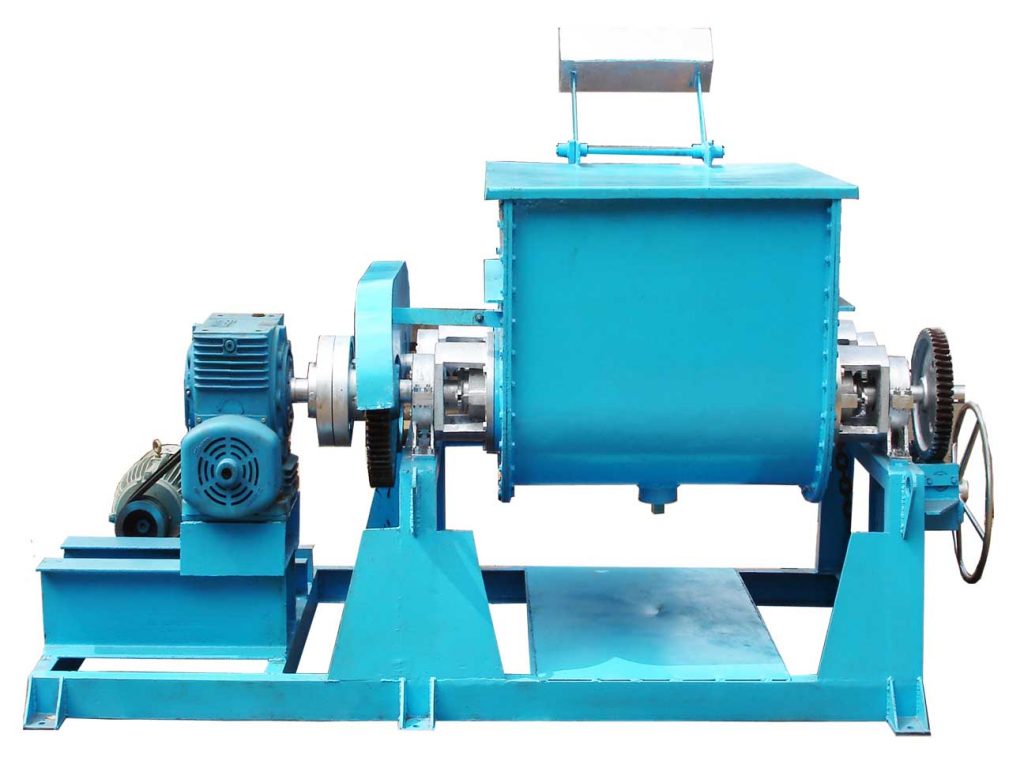

Electrode Paste Sigma Mixer for Batteries
Introduction:
Welcome to Abster Equipment, your professional and reliable supplier of Kneading Machinery since 2001.
sigma mixer/Z blades mixer/kneading machine/sigma kneader with double Z/Sigma Blades, is to be used for mixing and kneading of low-to high-viscosity products in many industries such as Batteries, BMC/DMC, Chewing gum, candy/sugar paste, plasticize/silly putty, Hot melt adhesive , silicon compound, CMC/Cellulose, Electrode paste, carbon, pencil leads, soap, pigments, inks, plastic ect.
Sigma type battery paste mixer structure:
Including kneading/mixing system, machine base, hydraulic system, transmission system, electric control system, heating system (optional), cooling system (optional), vacuum system (optional)
—- Discharge: Tilting discharging
Screw extruding discharging
Ball valve/bottom plate ( manual, electrical, pneumatic)
—- Heating: electric heating, hot water heating, hot oil heating, steam heating
— Cooling: Z blades water cooling, mixing chamber with jacket for cooling purpose.
—- Vacuum system: water-ring vacuum pump and buffer tank.
our Other Machine: Soap Noodle Mixer Sigma Mixer
Parameters:
| Model(L) | ABF-1 | ABF-2 | ABF-5 | ABF-10 | ABF-50 | ABF-100 | ABF-200 | ABF-300 | ABF-500 | ABF-1000 | ABF-1500 | ||||||||||
| volume(L) | 1 | 2 | 5 | 10 | 50 | 100 | 200 | 300 | 500 | 1000 | 1500 | ||||||||||
| Steam pressure(Mpa) | 0.3 | 0.34 | 0.34 | 0.34 | 0.34 | 0.34 | 0.34 | 0.34 | 0.34 | 0.34 | 0.34 | ||||||||||
| Hot oil circulation(Mpa) | 0.5 | 0.5 | 0.5 | 0.5 | 0.5 | 0.5 | 0.5 | 0.5 | 0.5 | 0.5 | 0.5 | ||||||||||
| Electric heating(Kw) | 0.5 | 1 | 1.5 | 2 | 3-6 | 4-11 | 6-15 | 6-18 | 12-24 | 18-36 | 32-45 | ||||||||||
| Fast Rpm | 45 | 42 | 60 | 45 | 35 | 36 | 36 | 40 | 30 | 35 | 40 | ||||||||||
| Slow rpm | Speed ratio 1.0-1.9 as option, according to materials features. | ||||||||||||||||||||
| Main motor (Kw) | 0.37-1.1 | 0.55-1.5 | 0.75-2.2 | 1.5-3 | 3-5.5 | 4-11 | 5.5-15 | 5.5-18 | 11-45 | 18.5-75 | 22-90 | ||||||||||
| Vacuum | ≤-0.094Mpa | ||||||||||||||||||||
| Discharge | 1.manual (for small capacity) 2.bottom ball valve 3.electric tilting 4.screw extruding | ||||||||||||||||||||
