Continuous Stirred tank reactor

continuous stirred tank reactor/chemical reactor/vacuum chemical mixing reactors

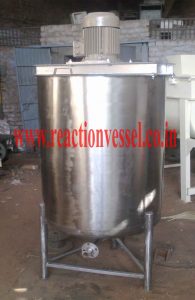

continuous stirred tank reactor

Pharma Preparation Vessel

The continuous stirred tank reactor equipment is mainly used for the production chains such as hydrolysis , neutralization, crystallization , distillation , evaporation and storage in the industries of medicine, chemical industry, food and light industry ects . The reaction kettles are made of SUS304,SUS316L stainless steel material . The mixers are divided into anchor type , frame type , oar type and turbo type ects . The rotation mechanism can adopt cycloid pin gear reducer and stepless speed reducer . The sealing mechanism can adopt mechanical sealing . The heating and cooling can adopt jacket , semi-tube and coil structure ects . The heating methods are steam , electric heating and heat transfer oil to satisfy the technology requirements under different work environment such as anti-acid , anti high temperature , anti-abrasion and anti-corrosion . The design and manufacturing can be carried out according to the technology requirements of customers .
Specifications

1. Material :304(L) 316(L)
2. Finish:Mirror or Matt Polish; Ra<0.4um

3. Fully conforms to GMP requirements

4. According to technological requirement, the tank can heat and cool materials. The heating way including steam heating and electric heating.

5. Various forms of blending vanes are suitable for production of different types of products.

6. Easy to discharge, bottom direct discharge or by transfer pump.

Stainless Steel Jacket Heating Chemical Reactor for Perfume
Tag:Stainless Steel Jacket Heating Chemical Reactor for Perfume

Structure
stainless steel lab reaction kettle is mainly used for the production chains such as hydrolysis,crystallization,distillation,evaporation and storage in the industries of medicine, chemical industry,food and light industry etc. stainless steel lab reaction kettle is made of SS304 and SS316 etc.stainless steel material.The mixers are divided into anchor type,frame type,oar type and turbo type etc.The rotation mechanism can adopt cycloid pin gear reducer and stepless speed reducer.The sealing mechanism can adopt mechanical sealing.The heating and cooling can adopt jacket, semi-tube and coil structure etc.structures.The heating methods are steam,electrical heating and heat guiding oil to satisfy the technology requirements under different work environment such as anti-acid,anti-high-temperature,anti-abrasion and anti-corrosion.The design and manufacturing can be carried out according to the technology requirements of customers
Specifications
1. Material :304(L) 316(L)
2. Finish:Mirror or Matt Polish; Ra<0.4um
3. Fully conforms to GMP requirements
4. According to technological requirement, the tank can heat and cool materials. The heating way including steam heating and electric heating.
5. Various forms of blending vanes are suitable for production of different types of products.
6. Easy to discharge, bottom direct discharge or by transfer pum
p.
Technical Parameter

Model ABF100 ABF200 ABF500 ABF1000 ABF1500 ABF2000 ABF2500 ABF3000 ABF4000 ABF5000
Volume(L) 100 200 500 1000 1500 2000 2500 3000 4000 5000
Nominal diameter(mm) 500 600 800 1000 1200 1200 1400 1400 1500 1600
Nominal pressure in kettle(Mpa)                                                        0.25-0.5
Nominal pressure in jacket(Mpa)                                                            0.25
Motor power(kw) 1.1 1.5 2.2 4.0 4.0 4.0 5.5 5.5 5.5 7.5
Blending rotation speed(r/min)                               63                    85                    130                       180
