Automatic Capsule Loader

Automatic Capsule Loader Machine

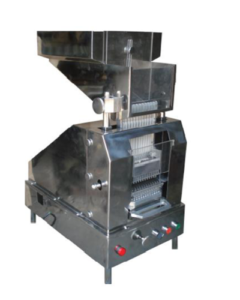

Automatic Capsule LoaderAutomatic Capsule Loader loads capsules automatically onto loading tray of Capsule Filling Machine. Machine is compact occupies minimum space. it gives higher production with much better standard of accuracy.

Loader automatically loads empty capsule in the loading plate for manually operated capsule filling machine, hence it take normally 5 minutes to load empty capsule in 300 holes loading plate manually, this machine cuts down that time to only 30 seconds. With the help of a Capsule Loader one can fill loading plates of 2 – 3capsule filling machines. Thus increase the production on one hand and reduce the number of operator & equipment cost on other hand.

Synonyms: Automatic Capsule Inserter, Automatic Capsule Orienter

Application: Loading trays of Hand Capsule Filling Machine

Suitability: Hard Gelatin, HPMC & Veg Capsules in 00, 0, 1, 2, 3, 4 & 5 sizes

Versions: Manual Capsule Orienter, Automatic Capsule Orienter

Salient Features

  • Compact model complies as per GMP requirements.
  • 220V, Single Phase power voltage, so no special connection required.
  • Low investment higher production output.
  • Simple to operate, can be handled by semi-skilled person.
  • No setting system for any change part.
  • Machine stop automatically after loading is complete.

Technical Specification

Production OutputUp to 20000 Capsules/hour
(depends upon operators’ efficiency)
Capsule CombinationsSize 00, 0, 1, 2, 3 and 4 (through format parts)
Sequence of holes25 x 12 = 300
Numbers of Loading TraysOne
Power Voltage220 Volts, Single Phase, 50 Hertz
Overall Dimension630mm X 430mm X 780mm approx.
Net Weight80 Kgs. Approx.
Gross Weight120 Kgs. Approx.
